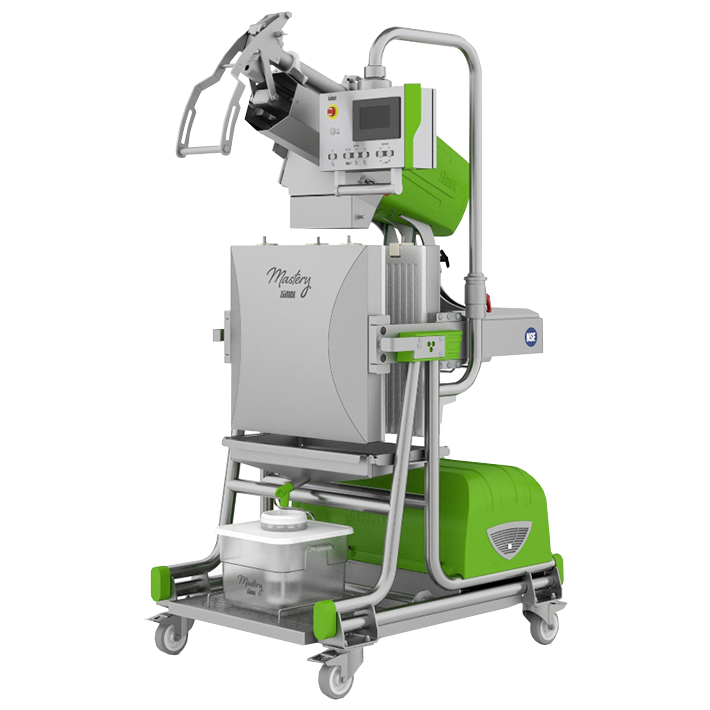

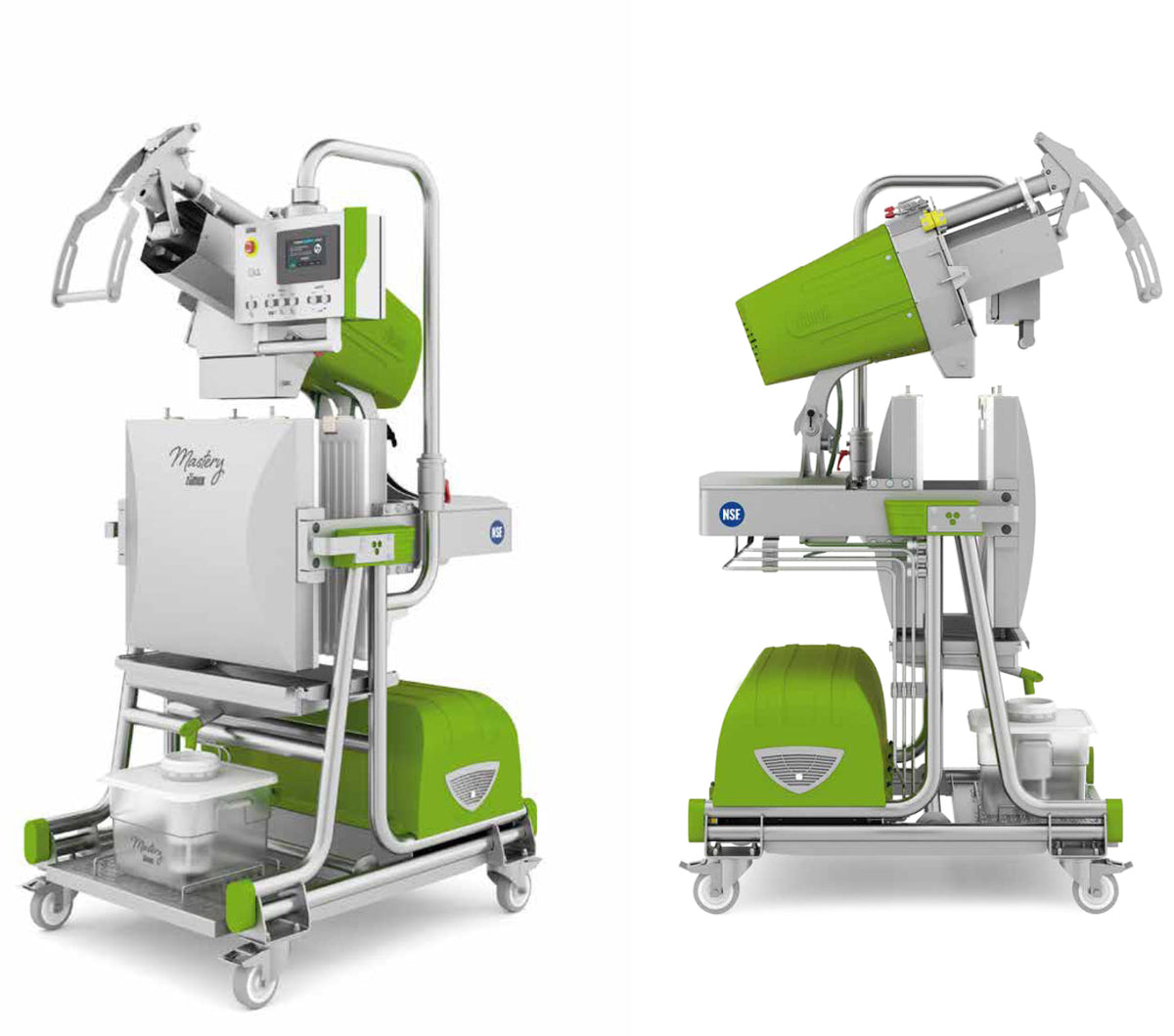

Zumex MASTERY Industrial Cold Press Multifruit Extractor - ZU-06732-UE

PLEASE NOTE the $50,545.00 advertised price is just an estimate excluding international freight. This model has a fixed RRP by Zumex in Euros plus international freight (this will be an LCL shipment from Spain). If you are interested in ordering please email us directly and we will send you an accurate quote or invoice for payment. Please do not proceed with the online order checkout.

Zumex celebrates its 30th anniversary with the introduction of the MASTERY. This ambitious re-interpretation of the cold press system has transformed it into the best proposal of its kind currently available. This is true due to its innovative operation, its beautiful design and production capacity. In fact, every detail has been improved resulting in an elegant, safe and functional design that guarantees high yield extraction from fruits and vegetables, plant milk and drinks can be extracted from nuts, such as almonds and cashews, whilst maintaining the vitamins and nutrients integrity.

With a ground-breaking design, the Zumex MASTERY is safer and more powerful than other Cold Press machines, thanks to its many innovations, such as the feeder, shorter and fold-away, designed to reduce the action space and improve access. At the same time, safety is guaranteed by its built-in pusher with automatic stop, which prevents accessing the shredder discs, providing the whole unit with greater hygiene and speedier use.

Mastery: Zumex’s cold press system designed for all types of fruit and vegetable juices, leading the way with its crushing efficiency and power, thanks to its shredder discs and its Brushless motor. It has a series of advantages that improve and facilitate operation. It also has an 11-ton press, which is more compact than any other press of its category.

It is robust but functionally designed in order to protect motors, panels and pressure group from splashes and knocks.

Product Video

Product Features

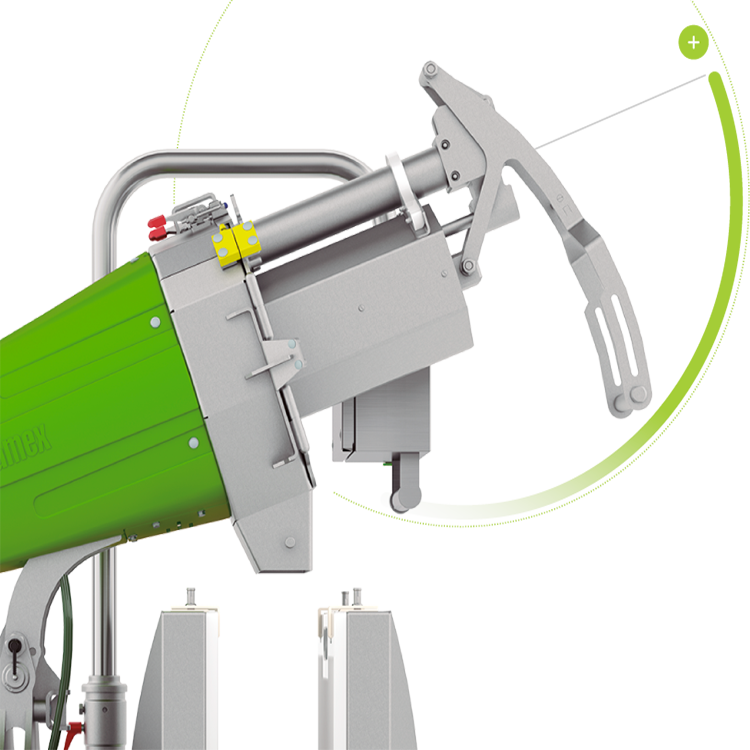

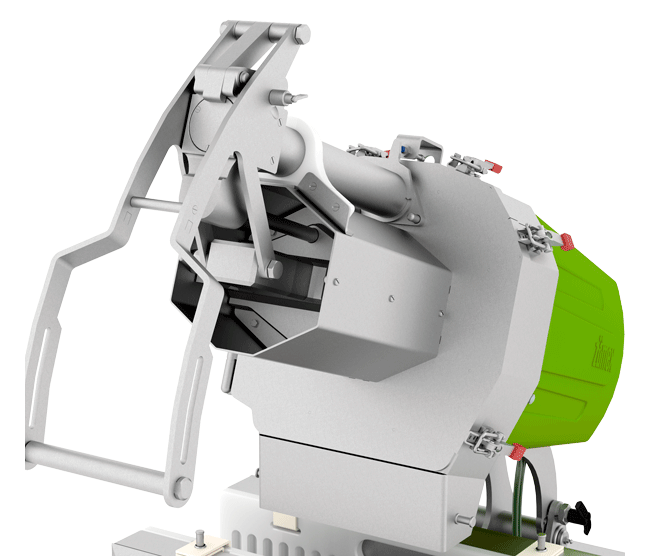

• Feed and Crushing System - Shorter, folding, and with built-in pusher, it reduces action space, improving access and increasing hygiene, safety and efficiency. It speeds up and makes loading easier, providing a greater and effortless push. The greater adjustment between pusher and high resistance shredder discs fully optimises the crushing process. It has a safety stop system during crushing, when the feeder input is released.
• Power - Its Brushless motor provides the greatest torque at any speed, adapting its capacity to the different types of fruit and vegetables. Its consumption is also less than that of other commonly installed motors.
• Press - High production capacity, of up to 30 gallon or 110 litres an hour. (Depending on the type of product). Its stainless steel press generates 11 tons of force. The cold press racks are designed to achieve a greater yield.
• Juice Collection System - It has a stainless steel tray and a 3 gallon tank. The tank includes a filter to eliminate possible undesirable particles that might get into the juice and to avoid excessive contact with the air.
• Centralised Control Panel - Real time control of all parameters from the operation area, crushing and pressing speed, pressing times and cycles through the control panel with 4.3” full-colour touch screen.
• Choose Your Working Method - Manual or semi-automatic. Use the different programs designed to improve its use, save time and obtain maximum performance. Choose from among the different programs: soft fruit, hard fruit, green leaf vegetables, mix. Or configure your mode of use by customising the times and pressing speed and number of cycles.
• Built-In Safety - It includes pusher presence and door opening sensors that make the cutting disc and the crusher motor of the machine stop automatically. It also has overload protection and an emergency stop button that deactivates all the systems if needed.

Product Specifications

• Crusher power: 1.5 kW (2 hp)
• Press power: 0.75 kW (1 hp)
• Voltage: Single Phase 220-240 V | 50 - 60 Hz
• Motor: Brushless
• Maximum pressure: 11 tons of total power | 185 bar (2610 psi)
• Production capacity: Up to 30 gal/h | 110 l/h
• Juice tank capacity: 11L
• Dimensions:940 mm L x 735 mm W x 1.700mm H I
• Weight: 303 Kg
• Touch display: 4.3” colour screen
• Made of: Stainless steel AISI 304
• Warranty: 3 Years Parts + an additional 2 Years Parts upon warranty redemption / 1 Year on Labour
