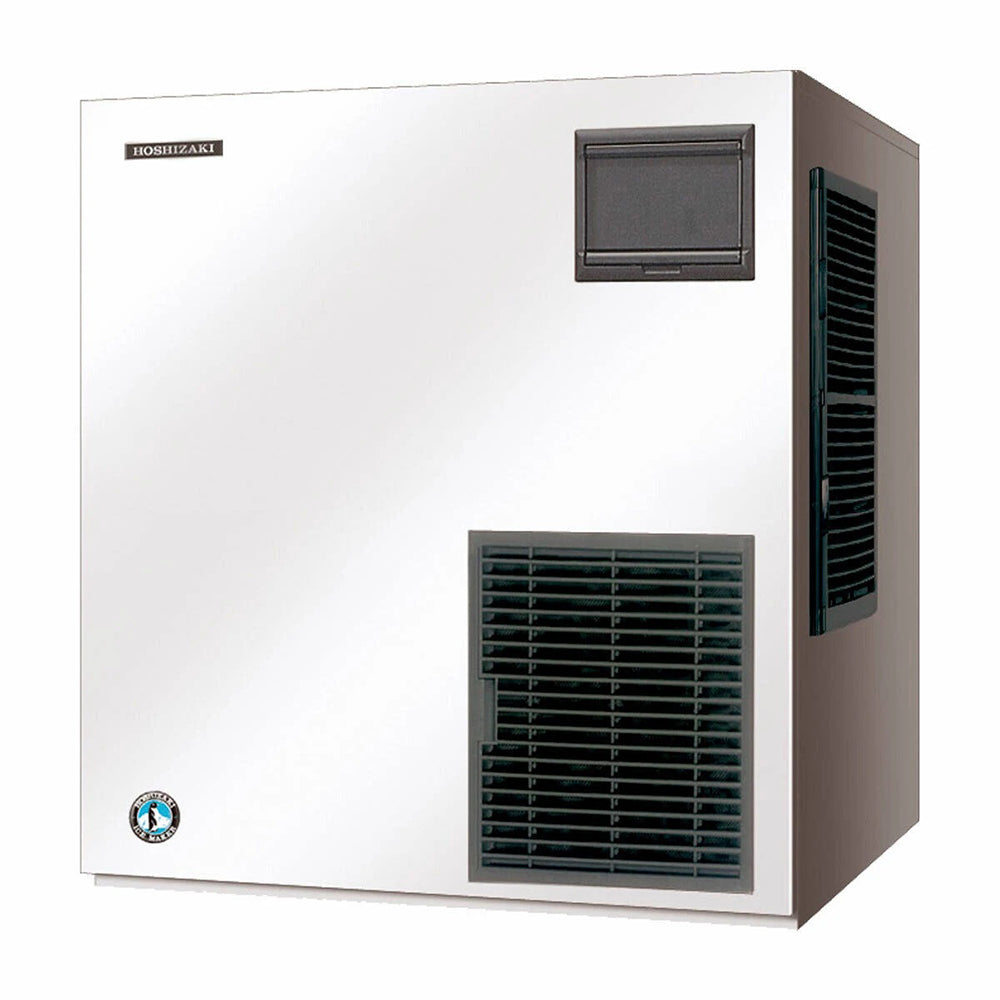

Hoshizaki Modular Flake Ice Machine 650kg/day - FM-750AKE

The Hoshizaki FM-750AKE Series Commercial Ice machine produces up to 530kg of flaked ice a day, which is often used to display fish, fresh food, and bottled beverages. In the medical field, flake ice is also used for organ transportation. Due to the unique auger system, the machine utilises the most efficient ice-making process, consuming equal water to ice production.

Product Features

• “Freeze Burn” is no longer an issue when displaying fresh fish or produce.
• Carbon auger bearings have a longer life expectancy than roller bearing, reducing maintenance costs.
• Automatic flush function helps keep the ice making system clean.
• Controller board with Operational Status display assists in troubleshooting.
• Due to the auger system, water consumption is equal to ice production.
• Can be converted to Nugget ice by changing the extruding head and cutter (parts at an additional cost).

Product Specifications

• Dimensions: 762mm (W) x 700mm (D) x 780mm (H)
• Weight Net: 133kg
• Packed Weight: 143kg
• Cooling: Air
• AC Supply Voltage: 1 PHASE 220-240V 50Hz / 15 AMP Plug
• Amperage: Running: 9.2A Starting: 43A
• Refrigerant Charge: R404A

Production Capacity per 24 hours

• Approx. 750kg @10°C Air temp; 10°C Water
• Approx. 650kg @ 21°C Air temp; 15°C Water
• Approx. 530kg @ 32°C Air temp; 21°C Water

Operating Conditions

• Ambient Temp.: 5-40°C
• Water Supply Temp.: 5-35°C
• Water Supply Pressure: 0.05-0.8MPa (0.5-8bar)
• Voltage Range: Rated Voltage ±10%

Max Storage Capacity

• 91000026 217kg Ice Storage Bin
• 91000027 348kg Ice Storage Bin
• 91000053 578kg Ice Storage Bin

Additional Parts

• 96000006 18D Top Kit
• 96000008 4DM Top Kit
• 87000123 Water Filter Kit Twin 450mm cartridges
• 87000107 450mm Replacement Cartridge
• 87000149 Water Filter System & Guage
• Sauermann External Drain Pump for Hoshizaki Ice Makers - NI82
• 81000116 Stainless Steel Hose
• 95001013 Adjustable Leg

Warranty

• 2 year parts & labour on entire unit
• 5 year (parts only) on compressor & air cooled condenser coil
• Get an additional 6 months when registering an Ice Machine

Product Resources

• Spec Sheet
