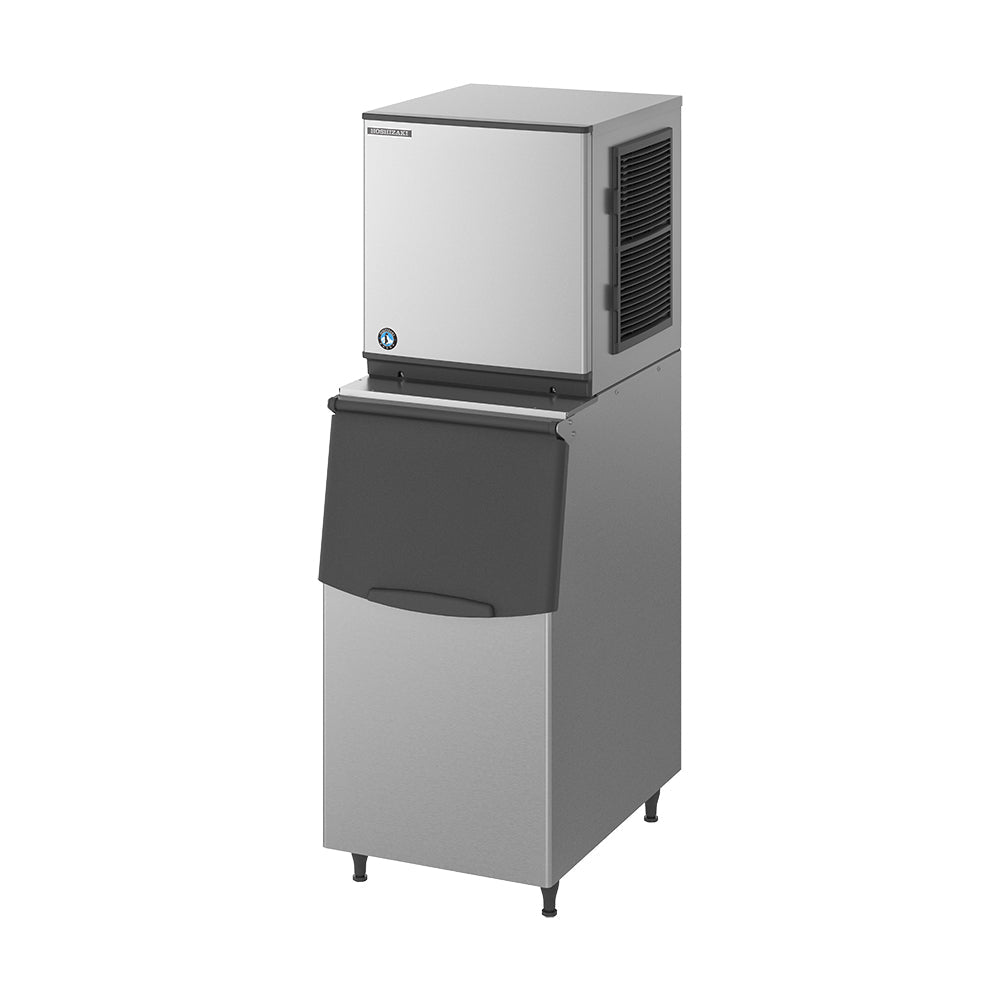

The Hoshizaki Modular Crescent Ice Machine is the perfect solution for any business that requires a reliable and efficient source of ice. With a daily ice production capacity of up to 255kg, this machine can keep up with even the busiest of demands.
The KMD-270AB (SS) features a sleek stainless steel exterior that is both durable and easy to clean, making it ideal for use in any commercial setting. The machine is also designed to be modular, which means it can be paired with a variety of different storage bins, allowing you to customize the machine to suit your specific needs.

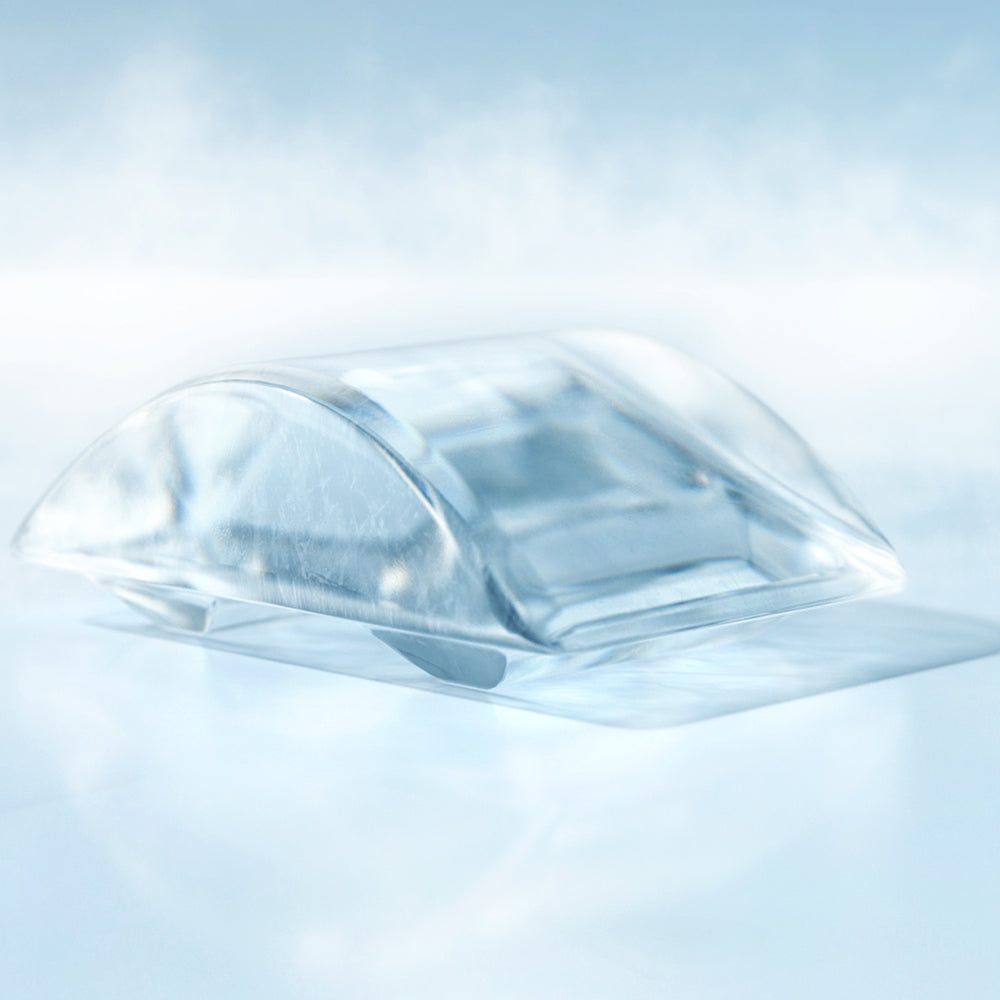

One of the key features of the KMD-270AB (SS) is its crescent-shaped ice. This unique shape is designed to minimize ice melt and sticking, resulting in a more consistent ice supply and less waste. The machine is also equipped with a built-in antimicrobial agent, which helps to prevent the growth of bacteria and other microorganisms.
The KMD-270AB (SS) is designed for easy operation, with a user-friendly control panel that allows you to adjust the ice thickness, monitor the status of the machine, and more. The machine is also designed for easy maintenance, with a removable air filter that makes it easy to clean and replace.
Overall, the Hoshizaki Modular Crescent Ice Machine is a reliable and efficient solution for any business that requires a consistent and high-quality source of ice. With its modular design, easy operation, and low maintenance requirements, this machine is sure to meet all of your ice production needs.
Product Features
- Individual premium crescent cube with no ice bridging.
- Exceptionally hard crystal clear cubes that melt slowly.
- Durable stainless steel exterior. Slide in air filter for easy cleaning – maintaining performance efficiency.
- Patented double sided stainless steel evaporator for all water conditions – produces more ice in less cycles.
- Audible alarms.
Product Specifications
- Freeze Cycle Time: Approx. 26.8min
- Ice Production Per Cycle: Approx. 5.3kg / 572pcs
- Dimensions: 560mm (W) x 625mm (D) x 610mm (H)
- Weight Net: 57kg
- Packed Weight: 73kg
- Amperage: Running: 4.9A Starting: 24A
- Refrigerant Charge: R404A/780g
- Cooling: Air
- AC Supply Voltage: 1 PHASE 220-240V 50Hz/ 10 Amp Plug
Production Capacity per 24 hours
- Approx. 275kg @ 10°C Air temp; 10°C Water
- Approx. 255kg @ 21°C Air temp; 15°C Water
- Approx. 221kg @ 32°C Air temp; 21°C Water
Operating Conditions
- Ambient Temp.: 7-40°C
- Water Supply Temp.: 7-35°C
- Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
- Voltage Range: Rated Voltage ±6%
Max Storage Capacity
Additional Parts
Warranty
- 3 years Parts and Labour on the entire unit
- 5 years (parts and labour) on evaporator
- 5 years (parts only) compressor and air cooled condenser coil
- Get an additional 6 months when registering an Ice Machine
Product Resources
